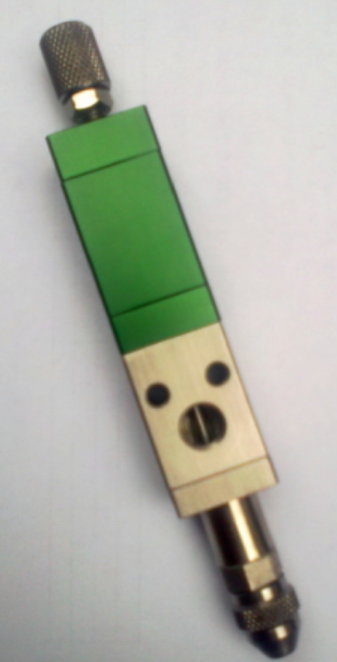

型式
Type:

回吸式點膠閥

使用氣源
Operating Air Source:

4-7Kgf/cm

最小吐出量
Min.Shot Volume:

0.01ml

操作黏度
Operation Viscosities:

1-1.000.000cps

主體材質
Wet Body Material:

不銹鋼

入料壓力
Material Input Pressure:

<300 kg

入料口尺寸
Material Inlet Outlet Size:

1/8″npt(f)

操作速率
Operating Cycle:

<600/min

外形尺寸
Overall Dimensions(mm):

22*22*140 (mm)

安裝尺寸
Mounting dimensions:

M4*13 (mm)

※可接各式針頭,可任意與供料泵或儲料壓力桶連接使用，適用于各種流體
